PVC & TPR Direct Injection Shoe Machines
Ruian Xingzhong Industrial Co., Ltd. manufactures rotary direct injection shoe machines for PVC/TPR soles molded directly onto uppers. Applications include canvas shoes and casual footwear. Foamed and non-foamed PVC/TPR processing requires a suitable formulation, upper, last and mould combination.
View details
Machines

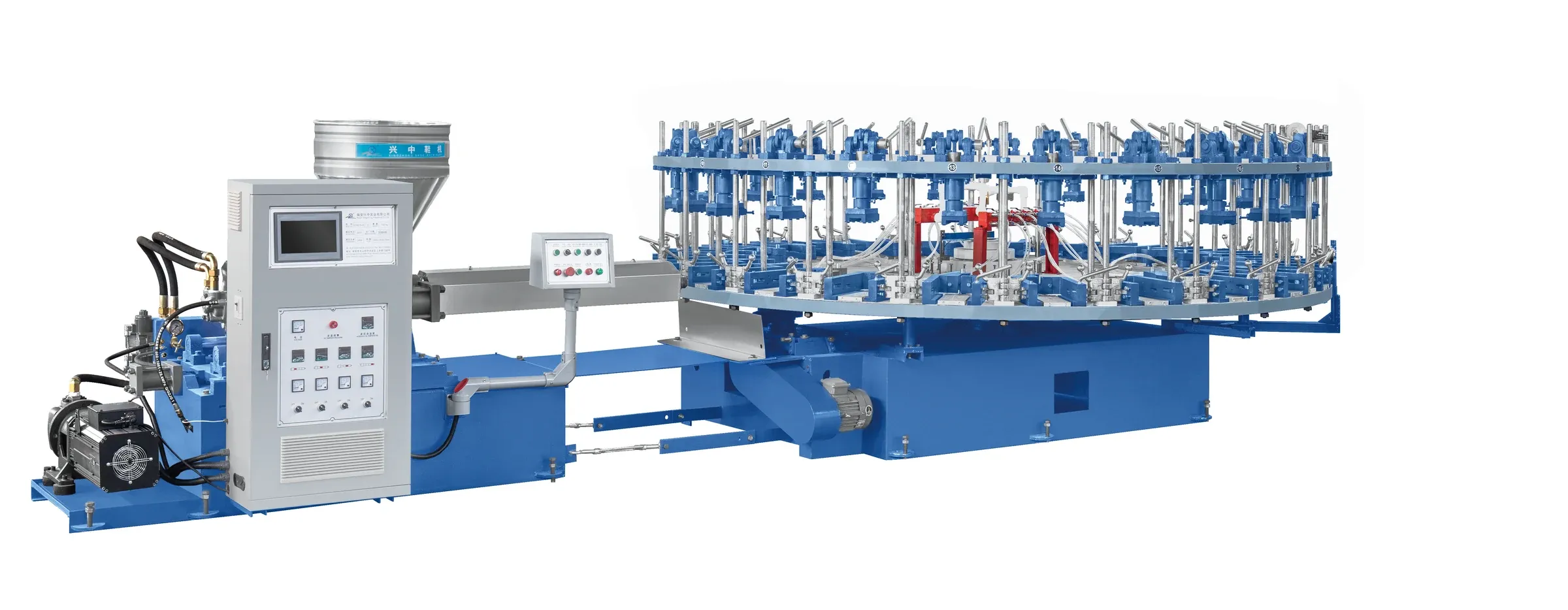

Rotary Type Shoe Injection Molding MachineModel: XZ-988/16-20-24-S(C)
Rotary type shoe injection molding machines with servo hydraulic systems, mould cooling system, and export-ready configuration.S(C) or AS(C): compare the production tasks
Both machines use rotary direct injection. The key automation difference is mould opening and closing. Operators remain part of the production process on both configurations.

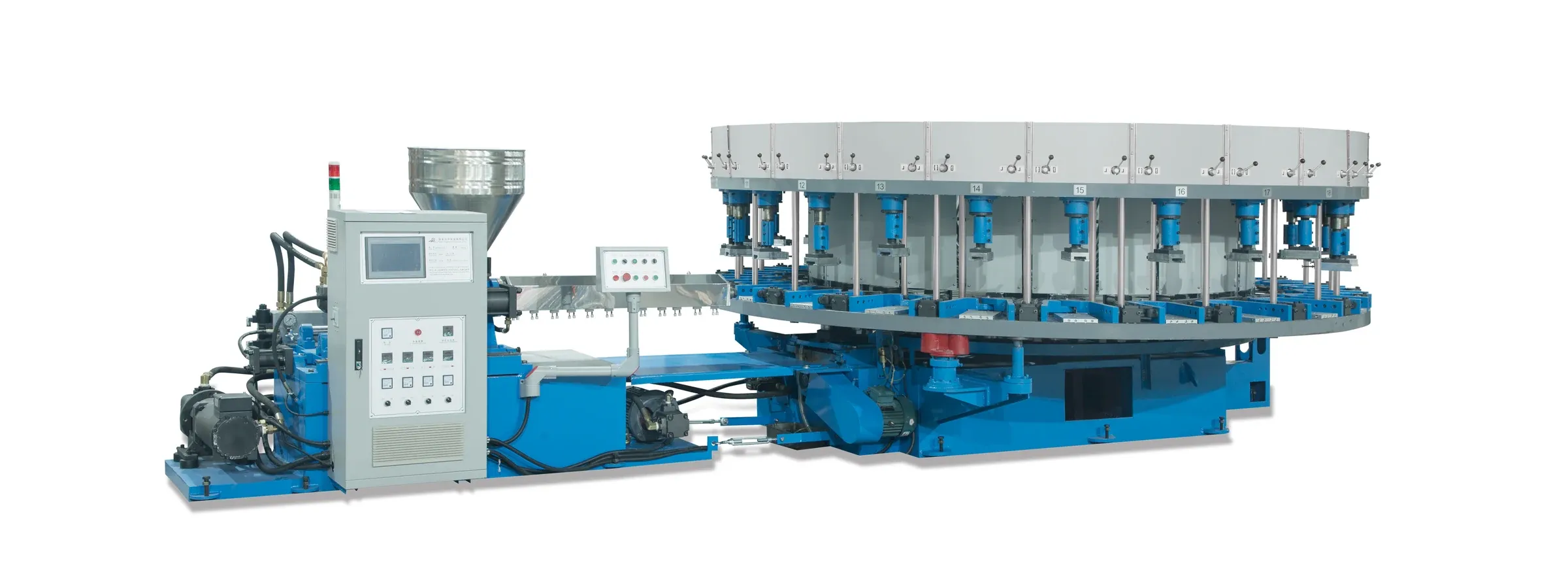

| Selection factor | XZ-988 S(C) — view specifications | XZ-988 AS(C) — view specifications |
|---|---|---|
| Mould opening / closing | Operator-controlled mould opening and closing. | Automatic mould opening and closing. |
| Operator tasks | Material preparation, upper loading and positioning, footwear removal and inspection. | Material preparation, upper loading and positioning, footwear removal and inspection. |
| Station options | ||
| Published reference output |
|
|
| Selection basis | Review when operator control and additional mould-handling steps are important. Match the mould sequence, staffing and investment to the shoe. | Review when automatic mould movements suit the production plan. Confirm that the mould fits the automatic sequence and plan hydraulic maintenance. |
Actual output depends on material formulation, footwear design, moulds, cooling requirements and operator coordination. Reference output is not a guaranteed production rate. Review station count alongside mould investment, factory space and the intended production cycle.
Machine Selection Guides
Explore the key production requirements and automation options before choosing your shoe injection molding machine.
Which Machine Should You Choose for PVC Direct Injection Footwear
Match shoe construction, material, moulds, cooling and staffing to your production target.
Semi-Automatic vs Fully Automatic PVC Direct Injection Shoe Machines: Which Should You Choose?
Compare investment, operator requirements, mould operation and maintenance when selecting an automation level.
Customer applications and regional service
Tunisia: two 20-station S(C) machines
Two XZ988/20SC semi-automatic machines, with installation support from the Egypt service center. A direct configuration reference for the S(C) range.
Huadeli: 24-station machines for canvas and casual shoes
Four 24-station PVC direct injection machines ordered in 2022. The case confirms the station count and footwear applications; it does not identify S(C) or AS(C).
Diamond: three 20-station automatic machines
An automatic PVC direct injection installation in India. The public record confirms 20 stations and automatic operation, without disclosing a model number.
Egypt after-sales service center
Read about resident engineering support, Arabic translation and local spare-parts stock. Confirm the installation and service arrangements for your factory with Xingzhong.
Prepare for selection with the DIP shoe mould reference and PVC material options.
Export inquiry
Share your requirements of Machine& Mould& Material
We will review your drawings, productivity, quantity and shipping needs before offering integrated solution.
